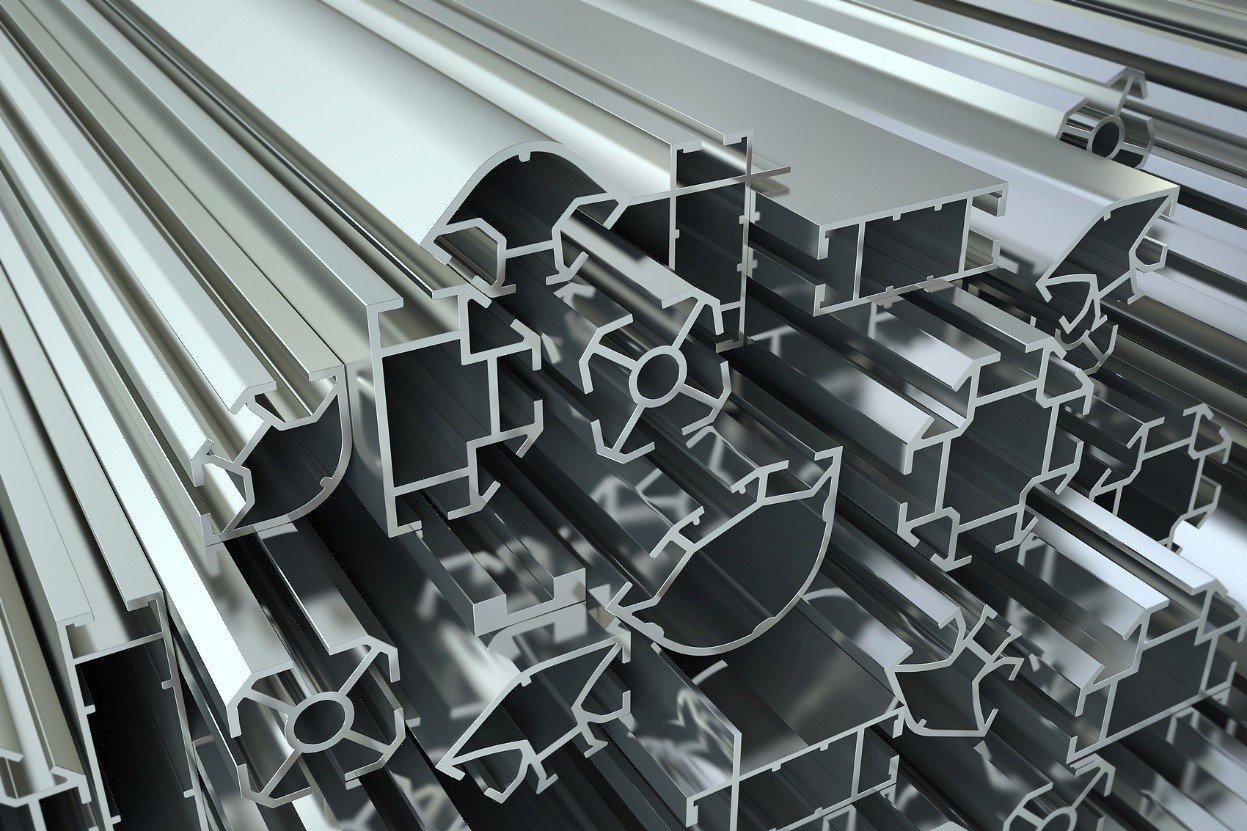

T-Slot Aluminum Profile Products
Aluminum T-Slot Profile is a versatile solution for building frameworks and structures. Aluminum T-Slot Profile features a unique T-shaped groove that allows easy and flexible connections. Users can assemble profiles quickly without welding, saving time and reducing costs.

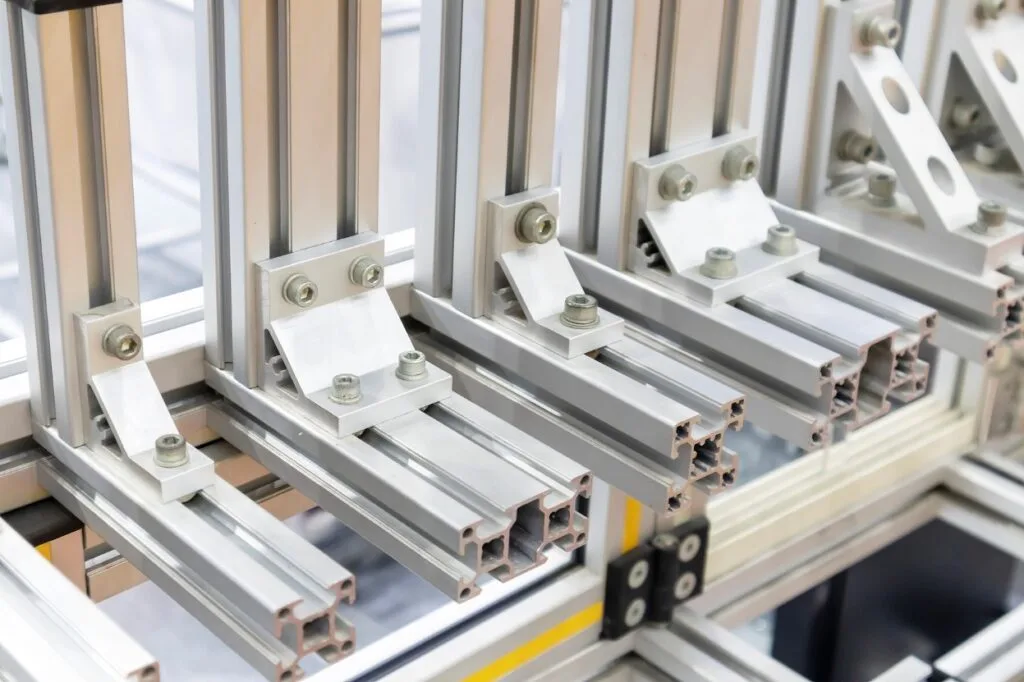

The design supports strong joints using connectors, fasteners, and accessories. These profiles are lightweight yet durable, making them ideal for industrial and DIY projects. They provide stability while maintaining flexibility for different configurations.

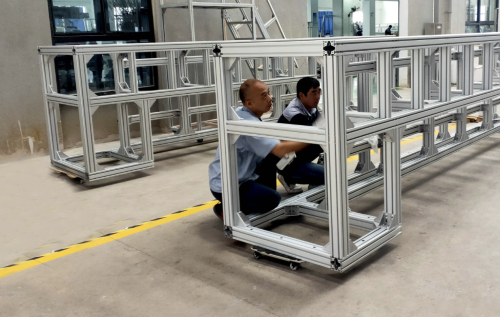

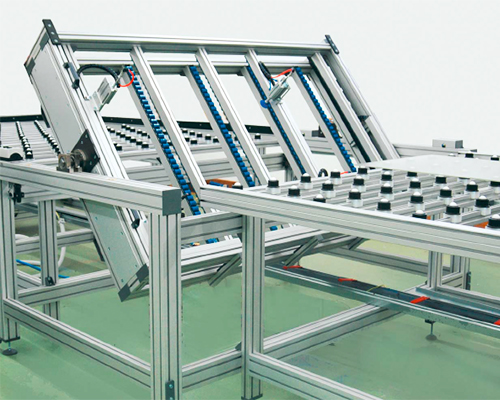

Common applications include machine frames, workstations, and display systems. They are also widely used in automation equipment and modular furniture. This adaptability makes them suitable for both commercial and residential environments.
Various types are available to meet different load requirements and design needs. Finishing options such as anodizing and powder coating enhance corrosion resistance and improve appearance. These treatments ensure long-lasting performance even in demanding conditions.
With customizable sizes and accessories, aluminum T-slot profiles offer unmatched versatility. Their combination of strength, flexibility, and aesthetics makes them a preferred choice for modern engineering and creative designs.
Specifications of T-Slot Aluminum Profile

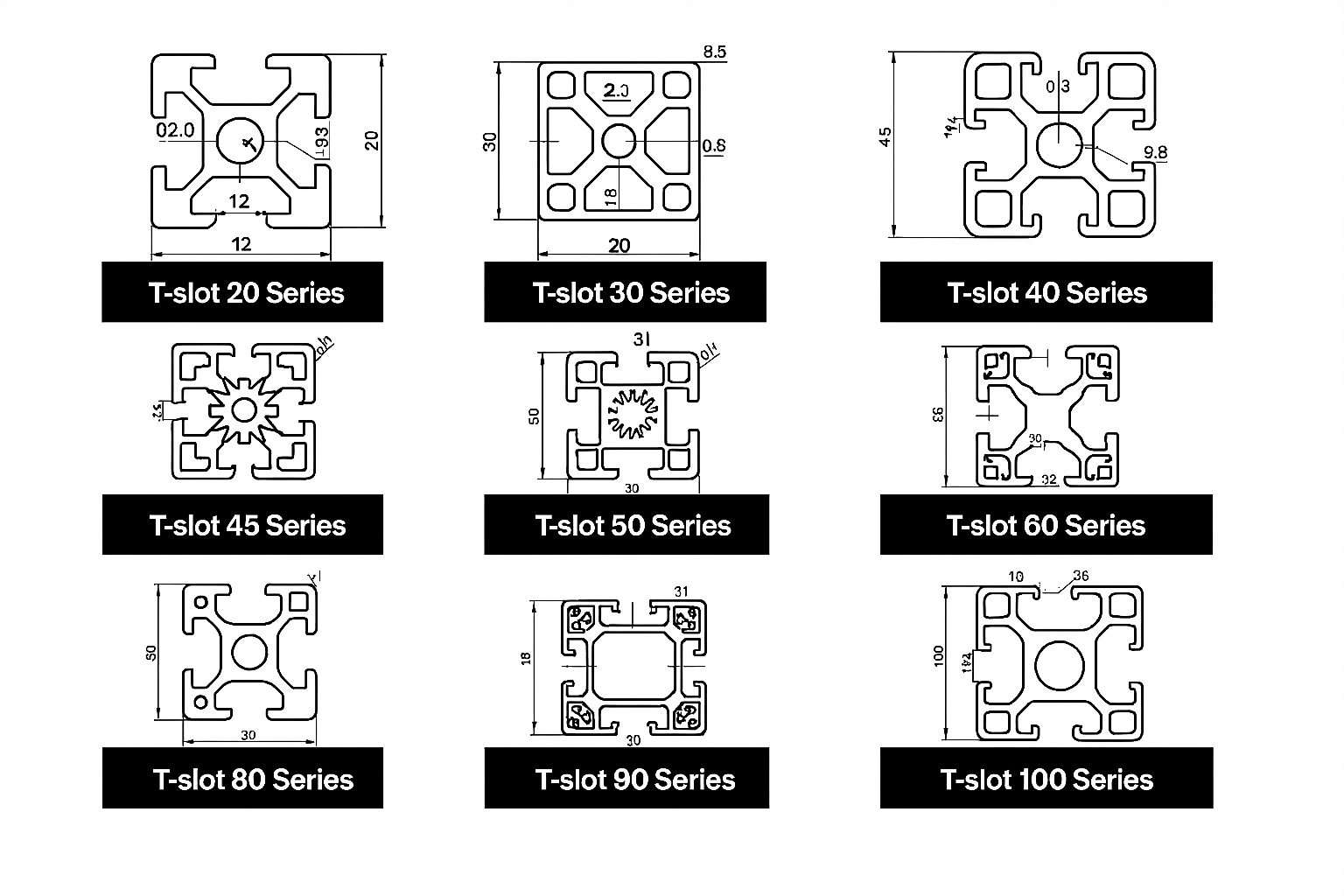

T-slot aluminum profiles are modular structural components widely used in industrial automation, robotic workstations, safety enclosures, and custom fixtures. Their unique T-shaped grooves allow for flexible assembly, easy reconfiguration, and strong load-bearing capacity. Available in standardized series (20 to 100), these profiles support efficient cable routing, precise alignment, and scalable design—making them ideal for smart manufacturing and robotic welding solutions.
01. 90 Series of T-Slot Aluminum Profile
Widely applied for safety functions, including safeguarding, testing, and inspection of workbenches, machine frames, conveyors, CNC equipment, and linear systems to ensure operational reliability and compliance.
| Item | Specification |
|---|---|
| Weight | 6.20 kg/m |
| Mass of Inertia | Ixt 172.14 cm4 y: 172.14 cm4 |
| Section Modulus | ZX 40.76 cm3 |
| T—slot width | 10.2 mm |
| T—slot height | 12.3 mm |
| Section size | 90 mm x 90 mm |
| Hole | $10.2 mm |
| Wall thickness | 2.0 mm |
02. 100 Series T-Slot Aluminum Profile
The 100-profile T-slot (10.2 mm) ensures superior strength for heavy-duty applications, compatible with M10 fasteners and 50-series profiles, ideal for clean rooms, conveyors, CNC frameworks, and modular structures.
| Products Name | Specification |
|---|---|
| Weight | 11 .48 kg/m |
| Mass of Inertia | 39783 cm4 y: 397.83 cm4 |
| Section Modulus | zx: 81.36 cm3 zy: 81 .36 cm3 |
| T—Slot Height | 12.3 mm |
| T—Slot Width | 10.2 mm |
| Section Size | 100 mm x 100 mm |
| Hole | #10.2 mm |
| Wall Thickness | 6.0 mm |
03. 160 Series T-Slot Aluminum Profile
160 Series T-slot aluminum profile is ideal for equipment racks and large machine beams, compatible with 80 Series extrusions for robust structural connections
| Products Name | Specification |
|---|---|
| Weight | 18.69 kg/m |
| Mass of Inertia | Ix: 1988.54 cm4 IV 1988.54 cm4 |
| Section Modulus | zx.• 257.13 cm3 zy: 257.13 cm3 |
| T—Slot Width | 8.2 mm |
| T—Slot Height | 12.3 mm |
| Section Size | 160 mm x 160 mm |
| Marginal holes | 6.8mm |
| Wall Thickness | 4.5 mm |
