CNC Pipe Sizing Press Machine
The Pipe Sizing Press Machine plays a crucial role in modern pipe manufacturing. It is designed to reshape pipe ends with high precision, using shrinking or expanding dies to achieve the desired dimensions. This process not only improves the yield of steel pipes during subsequent operations but also ensures consistent quality. In industries such as oil and gas, where accuracy at the pipe ends is essential, this machine becomes an indispensable tool.

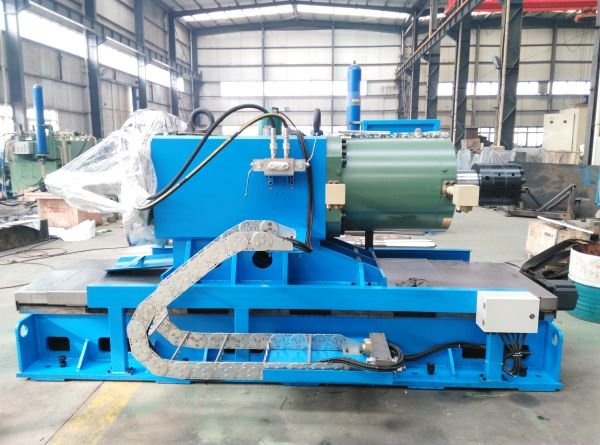

Built on a solid base, the machine integrates a passive support roller and two hydraulic clamping devices that hold the pipe firmly in place. The passive roller is equipped with a hydraulic cylinder, allowing height adjustments for different pipe sizes. Meanwhile, the clamping devices, also powered by hydraulic cylinders, guarantee stability during the entire sizing process. At the heart of the system lies the main hydraulic cylinder, engineered for efficiency and adaptability. Its maximum working pressure can be adjusted according to specific pipe specifications.
A digital pressure display makes operation straightforward, enabling precise control of clamping force. To further enhance productivity, the working speed can be customized between 5 and 20 mm/s, reducing production time and lowering costs.
The Innovative Features of the Sizing Press Machine
The Pipe Sizing Press Machine delivers exceptional precision and efficiency through its advanced hydraulic system, converting linear motion into radial expansion for accurate inner diameter sizing. Its innovative tube body expanding system reduces mold usage, cutting material costs and enhancing sustainability. A high-performance production line with automated loading, measuring, and cutting ensures continuous operation, improved safety, and consistent quality. Full automation minimizes manual labor and maximizes throughput, making this solution ideal for large-scale manufacturing.
01. Innovative Hydraulic Mechanism
The machine uses a powerful hydraulic system to drive the pull rod with strong tension. This linear motion is converted into radial expansion through an inclined block, ensuring precise enlargement of the steel pipe’s inner diameter for superior sizing accuracy.
02. Efficient Tube Expanding System
A newly designed expanding system reduces the number of molds required, minimizing material consumption and lowering production costs. This improvement makes the process more sustainable and cost-effective for large-scale operations.
03. High-Performance Production Line
The setup includes two sizing machines, a lower material bench, a stepping steel unit, and a lifting and rotating roller table, complemented by auxiliary equipment and an advanced electrical control system. This configuration enables continuous production and significantly boosts throughput.
04. Full Automation for Productivity
Integrated automatic loading and unloading, precise measuring, and cutting functions streamline workflows, reduce manual labor, enhance safety, and ensure consistent quality across every pipe produced.
