Pipe Chamfering Machine and pipe facing machine

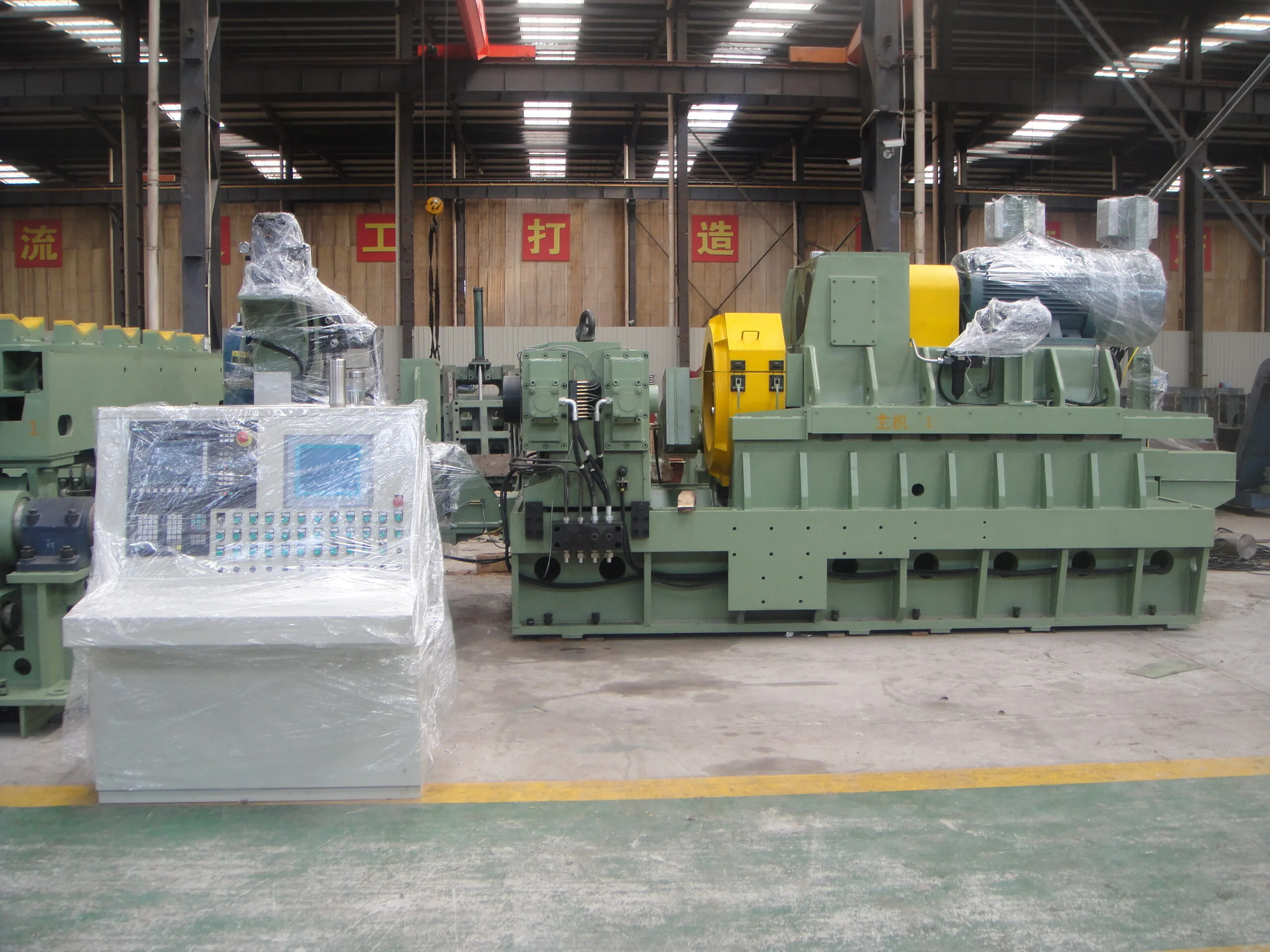

The JDS Series pipe chamfering machine and pipe beveling machine mark a new chapter in steel pipe end processing. Designed and developed by our company, this CNC horizontal system brings precision and efficiency to every operation. It handles beveling, facing, and chamfering with ease, using a fixed pipe and a rotating tool to achieve consistent results. What makes it truly remarkable is its dual functionality—it works as both a pipe facing machine and a pipe beveling machine, helping manufacturers boost productivity while cutting costs.

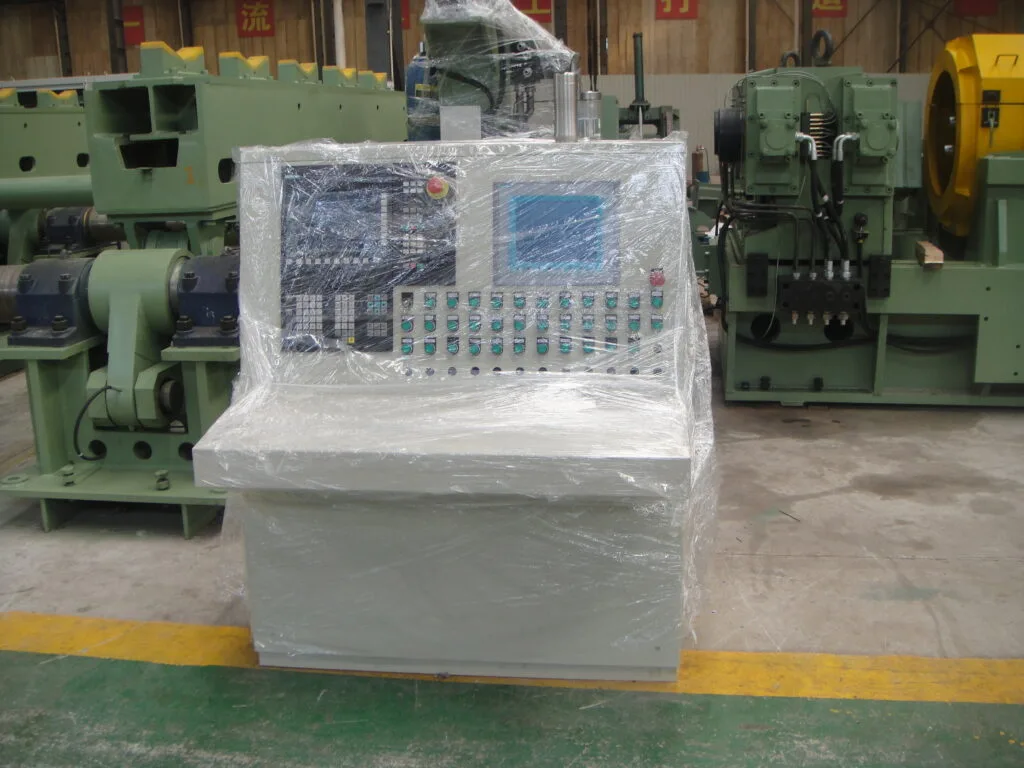

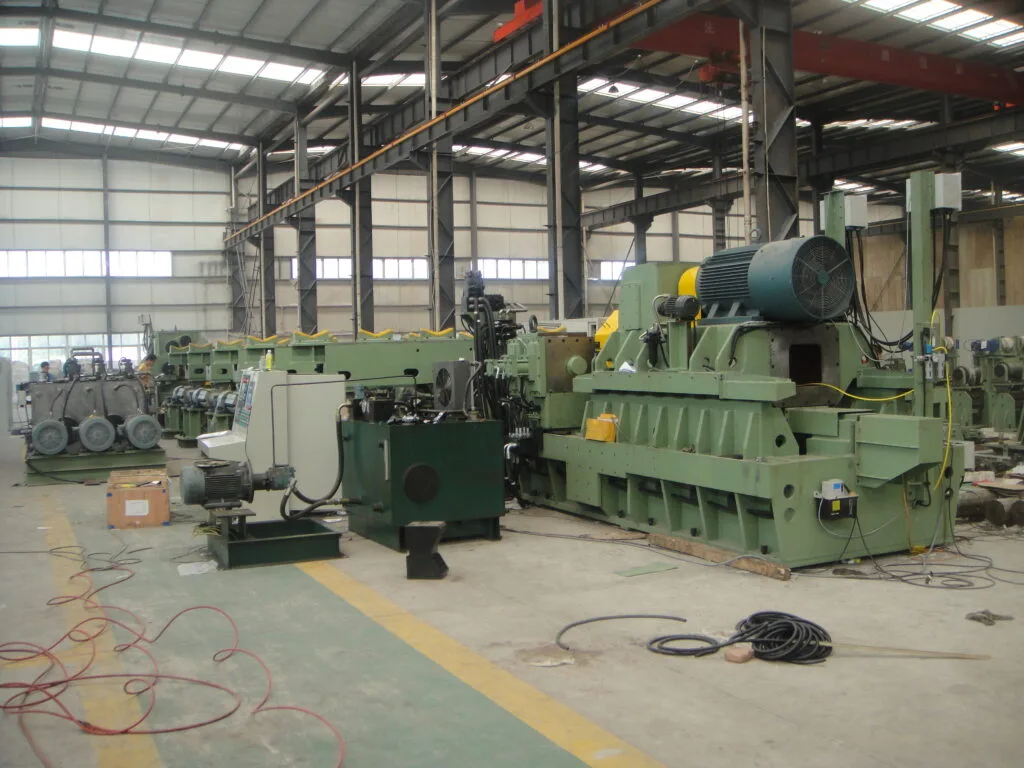

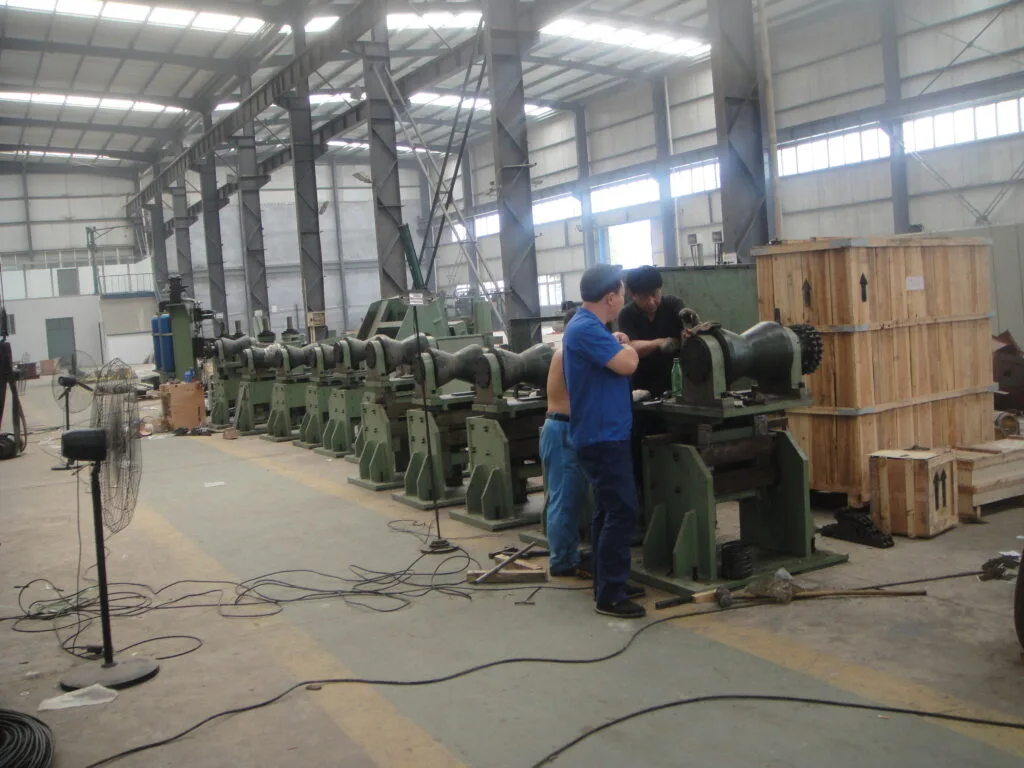

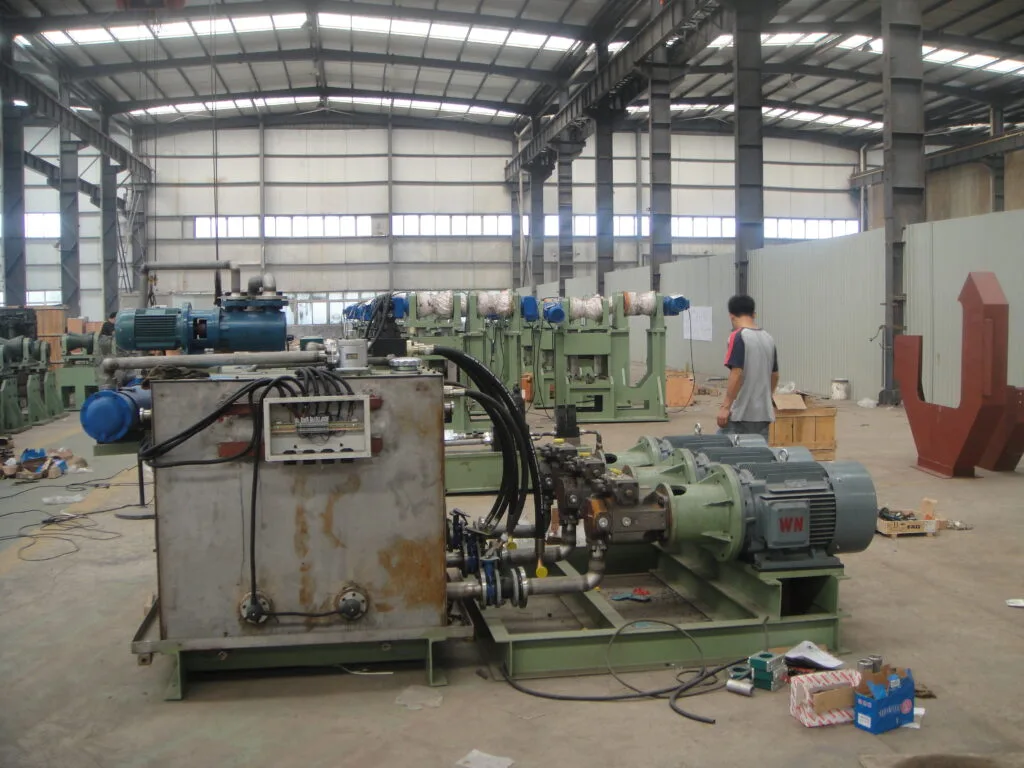

Built on a solid foundation, the machine combines strength and intelligence. Its bed base and headstock provide stability, while the lead screw feed system ensures smooth movement. The floating tool system adds flexibility for accurate cutting, and the clamping, pneumatic, and lubrication systems keep operations running seamlessly. At the heart of this innovation lies a Siemens control system, supported by a walking beam and transfer table conveyor. Together, they automate feeding, positioning, clamping, and processing, creating a workflow that feels effortless yet highly efficient.
The JDS Series is more than a machine—it’s a solution for industries that demand precision and speed. From oil casing pipes to welded pipes, high-pressure boiler pipes, pipeline pipes, and light pipes, it handles them all. Its automatic cycle capability means continuous processing, making it ideal for mass production. For businesses, this translates into higher output, lower labor costs, and uncompromising quality.
Choosing the JDS Series means embracing reliability and performance. It sets a new standard for pipe end chamfering and beveling, delivering the accuracy and durability that modern manufacturing requires. With this machine, efficiency isn’t just a goal—it’s a guarantee.
Pipe Chamfering Machine Specification
| Items | Unit | DL-273 | DL-365 | DL-460 | DL-800 |
|---|---|---|---|---|---|
| Processed Pipe Dia Range | mm | 114.3-273 | 139.7-365 | 245-460 | 323.9-800 |
| Max Processed Pipe Wall Thickness | mm | 50 | 60 | 60 | 60 |
| Max Processed Pipe Length | mm | 15000 | 15000 | 15000 | 15000 |
| Max Spindle Speed | Rpm | 80-320 | 50-200 | 40-160 | 25-100 |
| Z Axis Stroke | mm | 400 | 400 | 400 | 600 |
| Main Motor Power | kw | 110 | 110 | 110 | 160 |
| Pipe End and Bevel Quality | API 5l , GB/T 977.2-1999 | API 5l , GB/T 977.2-1999 | API 5l , GB/T 977.2-1999 | API 5l , GB/T 977.2-1999 | |
| Machining face perpendicularity | mm | 0.15/100 | 0.15/100 | 0.15/100 | 0.15/100 |
| Machining face Roughness | um | R6.3 | R6.3 | R6.3 | R6.3 |
| Control System | Siemens S7-300 | Siemens S7-300 | Siemens S7-300 | Siemens S7-300 |
Pipe Chamfering Machine Innovation and Features
Precision Meets Efficiency
Pipe chamfering machines are essential in modern metalworking. Designed to bevel and prepare steel pipe ends, these machines deliver exceptional accuracy and speed. Their advanced engineering makes them the preferred choice for professionals who demand reliability and performance.
Versatile Adjustment for Multiple Pipe Sizes

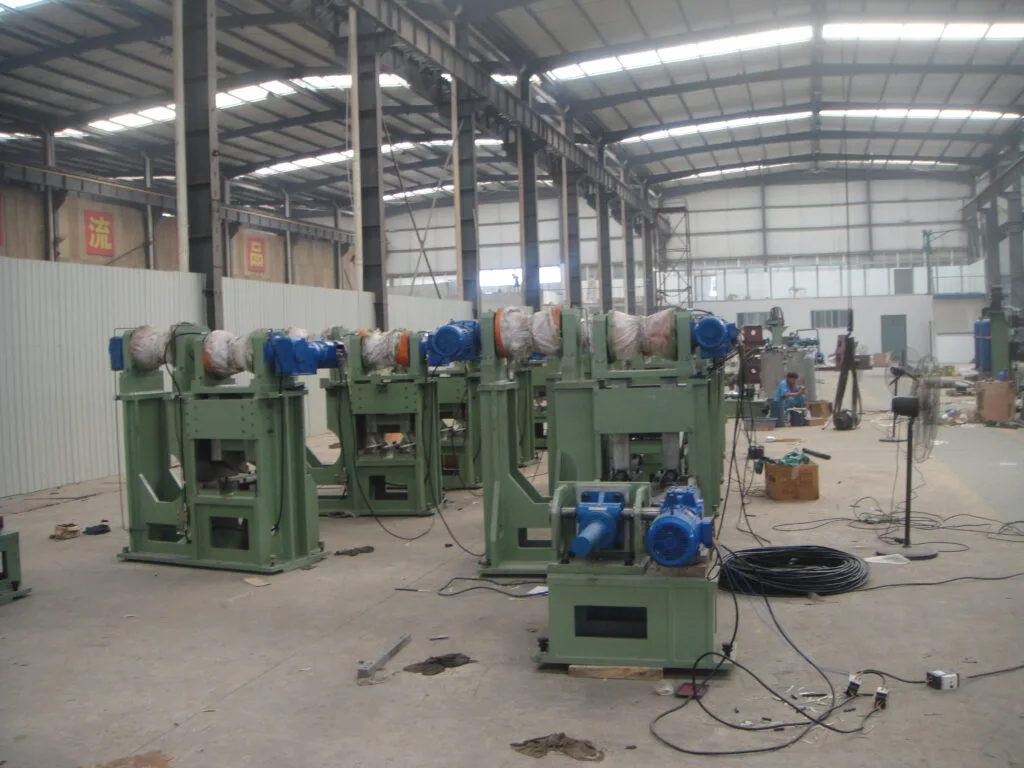

The adjustable tool holder is the key to flexibility. By turning the adjustment screw, operators can easily reposition the tool to fit various pipe diameters. Combined with the guide roller and floating beveling function, the pipe end chamfering machine adapts seamlessly to diverse project requirements without sacrificing precision.
Robust Structure for Long-Term Stability

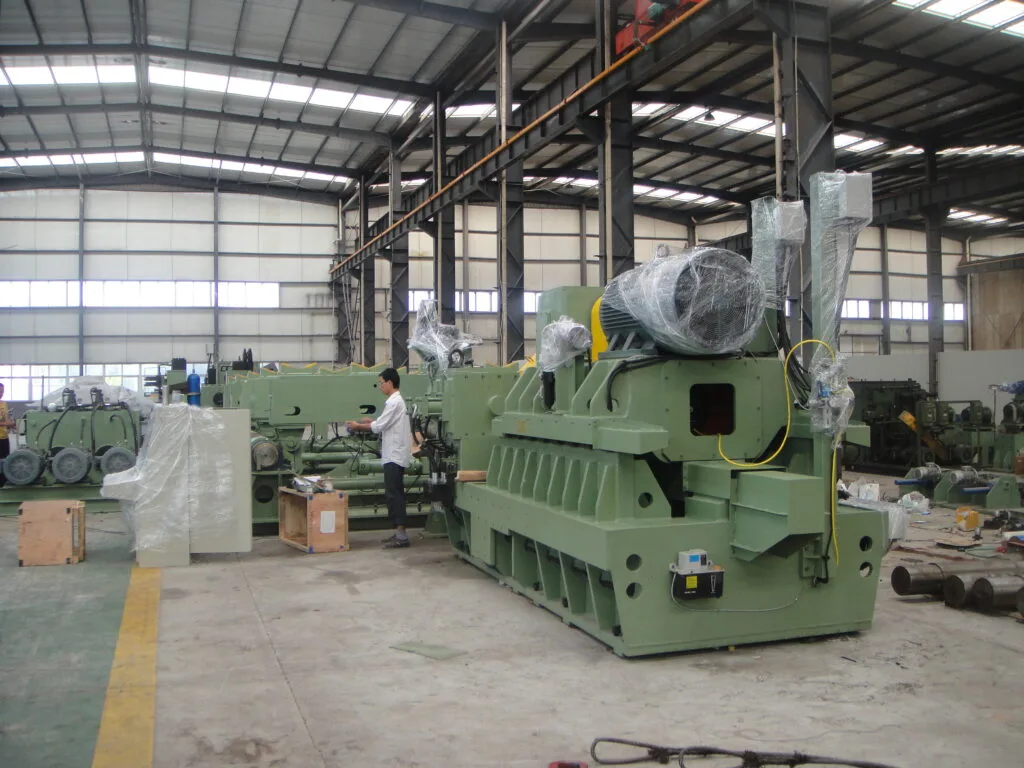

At the heart of the machine is an integrated cast headstock, which provides superior shock absorption and enhances cutting accuracy. The main shaft, crafted from heat-treated alloy steel and supported by precision tapered roller bearings, ensures smooth operation and extended service life. Intelligent lubrication and oil cooling systems further reduce temperature rise, improving rigidity and maintaining high precision during continuous operation.
Consistent Performance for Heavy-Duty Applications
For thick-wall pipes, stability is critical. The machine features a pre-loaded precision guideway and a vibration-reducing damper to maintain consistent cutting speed. A powerful AC variable frequency motor drives the spindle through a reducer, enabling high-speed rotation. Rigid chucks automatically clamp the pipe, guaranteeing secure positioning and accurate movement throughout the process.
Why Choose Our Pipe Chamfering Solutions?
- High Precision: Integrated cast structure and premium bearings ensure accuracy.
- Flexible Adaptation: Adjustable tool holder and floating beveling meet varied needs.
- Durability and Efficiency: Intelligent lubrication and variable frequency drive extend machine life.
