Steel Cutting laser Machine -HTTC-6020E

Overview of the HTTC-6020E Steel Cutting laser Machine

The HTTC-6020E series steel cutting laser machine is a breakthrough in medium power laser technology, showcasing our commitment to innovation. Developed independently, this machine incorporates advanced features that set it apart in the competitive landscape of laser cutting solutions.

Key Features and Benefits of the cnc laser cutting machine

One of the most notable advancements in the HTTC-6020E series cnc laser cutting machine is its imported transmission drive system, which ensures precision and reliability during operation. The new generation of hollow beds and aviation-grade extruded aluminum gantry contribute to both durability and lightweight maneuverability. The addition of a pneumatic control module enhances the machine’s efficiency when executing intricate cuts.

Enhanced Safety and Performance of the cnc laser cutting machine

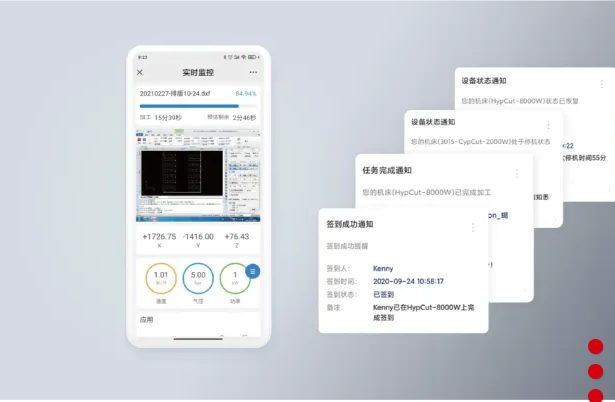

Safety is a paramount consideration for the HTTC-6020E series . With a fully enclosed laser shield design, users can operate the machine with confidence, knowing that protection against radiation exposure is prioritized. The high-speed switching platform, combined with a sophisticated CNC cutting system, delivers powerful cutting capabilities essential for industries like sheet metal, elevator manufacturing, and kitchenware production. Furthermore, the intelligent monitoring system significantly reduces the chances of accidents, ensuring a safer working environment..

Unleash the Power

Advanted Features For The Steel Cutting Laser Machine

High Laser Power Source

The Steel cutting laser machine Equipped With Max 6000W/12000W laser Source, guarantee the cutting quality and Quality

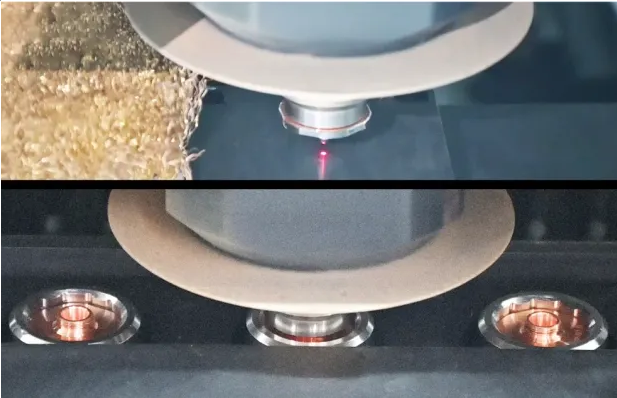

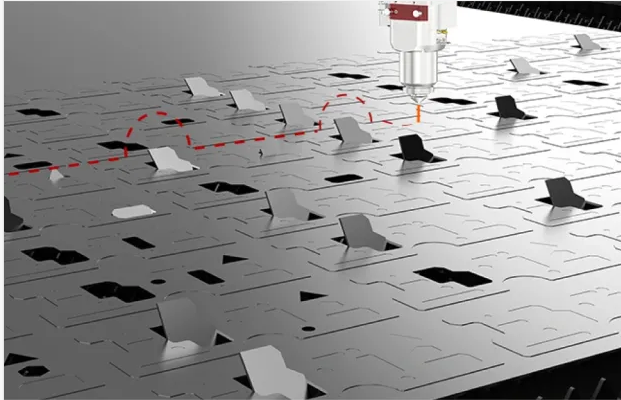

High Intelligent Control system

This is a flexible section where you can share anything you want. It could be details or some information about feature two.

Excellent Cutting Precison

Cast Servo-followers for good dynamic performance and load-bearing

Intuitive Opertion System

The machine offers easy operation through its large touch-screen interface with intuitive icons.

The Performance of the sheet metal laser cutter show our innovation , engineering ability in the metal sheet cutting industry

Steel Cutting Laser Machine Specification

Item	Specification
Performance Specification
Max Cutting Size	6000mm x 2000 mm
Max Load Capacity	1000 Kg
Max Linkage Speed	120m/min
Position Accuracy	±0.03mm per Meter
Repeated Positoning Accuracy	±0.02/1000mm
Max Accelerated Speed	1.2 G
Working Environment	Tem: 0-40 oc Humidity 80% Less
Cutting Material	Carbon Steel, Stainless Steel , Aluminum , Copper, Galvanized Steel Plate etc
Mechanical Specification
Control System	FSCUT2000E
HMI Pattern	Super Touch Screen
Cutting Software	FSCUT
Laser Source	Raycus6000w
Laser Cutting Head	Raytool BM06K Auto Focus Cutting Head
Cooling System	S&A Water-Cooled Chiller
Servos and Motor	Yaskawa Servo Motor system
Reducer	Nidec ( shimpoo Reducer from Japan )
Transmission System	YYC Rack and Pin, HIWIN Guide Rails
Bed Body	Tube-welded,Excellent engineered ,Stress-Relieved
Gantry Structure	Cast Aluminum beam
Exchangible Bed Pallet	Yes
Electronic Parts	Schneide /Omron and Igus Cable
Hydraulic Parts	SMC/ AirTec Brand
Electric Control Cabinet	Independent
Parted Dust Removal System	Automatic Segmented , Draught fan 5.5 kw , 2800 RPM
Lubricated System	Automatic
Bevel Cutting	Optional
Power Supply	380V, 50HZ±10%
Auxiliary Gas	Compressed air, Oxygen, Nitrogen
Valves	O2 Proportional Valve & N2 Proportional Valve
AC System	An Air Conditioner for Electric Cabinet

The Featured Components of the laser cutting machine

01.

Hight Intelligent Cycut FSCUT 2000E Control Systme

FSCUT2000E medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabrication industry, with features of easy to install and adjust, excellent performance and fully integrated solutions.

Control system of the cnc laser cutting machine

02.

Super touch screen industrial computer

The touchscreen display adopts the UI design of the display and the working table to make the use more intuitive. High-definition capacitive touch screen, equivalent to the positioning accuracy of an ipad.
The elegant shape curve fits the body design, and the powerful waterproof and breathable system makes the space breathe and use more smoothly.

High-definition plasma tempered glass makes the screen more delicate and comfortable to operate. The large display menu layout is simple and intuitive, with built-in cutting parameters to improve machining reliability.

03.

Raycus 6000W Laser Generator

The sheet metal laser cutter has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation..

Cutting Head of sheet metal laser cutter

04.

Raytool Cutting Head

This cutting head of the steel cutting laser machine has strong advantages in medium power large format fiber laser cutting applications
The internal structure of the laser head is completely sealed to avoid dust pollution of the optical part the laser head adopt

05.

Transmission System

• The Yaskawa Servo Motors and Drives with fast dynamic response provides speed and performance stability.
• The maximum idle speed of the machine can reach up to 130 m/min with the
Acceleration of 1.5 G.
• With perfect combination of servo system with the Shimpo planetary gearbox and Helical Rack & Pinion improves the Position and Re-Positioning accuracy of the machine.
• The Linear Transmission system comprises of from PEK Helical Rack and HIWIN
Linear Guides which improves
• High quality Cast Aluminium Gantry is much lighter compared with cast iron gantry which highly improves the gantry strength and rigidity.

Yaskawa Servo Motor

High Accurate Rack and Pin

Shimpoo Reducer

HIWIN Guide Way

Steel bed of the steel cutting laser machine

06.

Heavy Plate Welding Machine Body

ANSYS” professional software for finite element analysis, many times to optimize the design, improve the dynamic performance of the bedsystem; The bed adopts linear guide rail, high speed, high precision, rack and pinion transmission, maximum positioning speed 140M/min

The “honeycomb” structure prevents the temperature stress from affecting the bed precision;It can also cut off the vibration generated when the bed runs at high speed

The machine bed is welded with carbon structural steel misaligned honeycomb structure, machined after stress relief annealing, and then subjected to vibration aging and natural aging treatment, so that the stress of welding and machining can be completely eliminated, and the bed is guaranteed. Excellent rigidity and high precision, can maintain normal use for 20 years without deformation.

07.

Parts Dust Removal System

Partition dust removal system can dedusting each processing area of the worktable separately. The worktable can be divided into 4 areas, 6 areas, 8 areas, etc. according to the size of the worktable. When the laser head is fixed in a certain area or several certain areas, the partition dust removal system can be individually dedusting in the certain areas according to the customer’s processing needs,can increase the dust removal effect in this area and produce better workpieces..

Dust and smoke collector of the steel cutting laser machine

02.

Automatic Lubrication System

Automatic lubrication system upgrades, which increases gear and screw lubrication, regular quantitative provision of lubricants, and extends the service life of the machine (other manufacturers only provide guide rail lubrication)
The felt wheel can lubrication for the gear and rack.Automatically calculate time and travel distance for lubrication.

The Cutting Capacity of the Plate laser cutting machine

The Delivery of the Plate laser cutting machine
