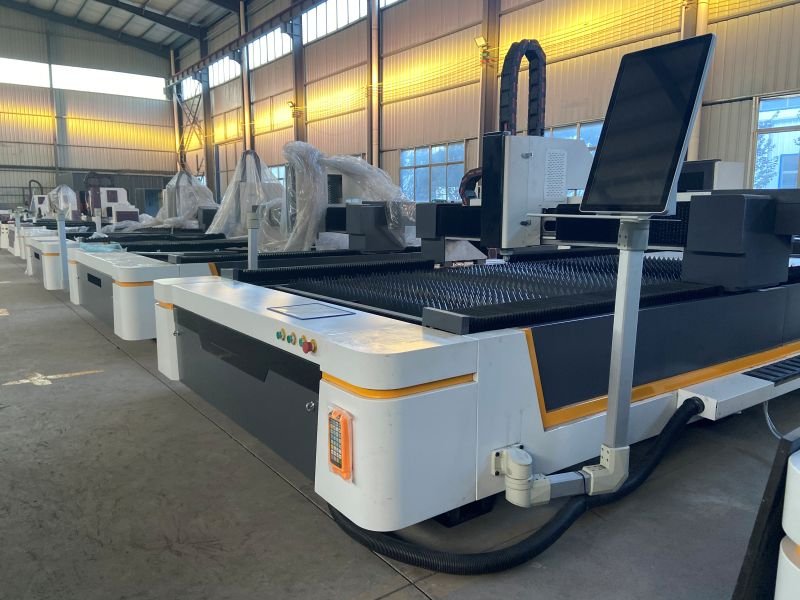

Laser Cutting Machine For Metal Sheet HTSB-3015

The HTSB-3015 laser plate cutting machine represents a significant advancement in metal fabrication. Known for its superior precision and enhanced performance, this machine has quickly become a benchmark within the industry, illustrating how modern technology can transform traditional manufacturing methods. At its core, the HTSB-3015 utilizes advanced laser technology, enabling it to achieve exceptional cutting speeds and accuracy that were previously unattainable with conventional methods.

One of the standout features of the HTSB-3015 is its expansive cutting area, which accommodates larger metal sheets and allows for more complex designs without the need for manual repositioning. This increased surface area not only enhances productivity but also reduces the time spent on setups and adjustments, enabling businesses to operate more efficiently. Such efficiency is crucial in today’s fast-paced manufacturing environment, where both time and precision play a vital role in ensuring customer satisfaction and maintaining competitive advantage.

In addition to its physical attributes, the HTSB-3015 is equipped with cutting-edge features such as automated material loading and unloading systems, which minimize labor costs and the risk of human error. These innovations contribute to consistent high-quality results across different projects, reinforcing the machine’s reputation as an industry leader. Furthermore, the integration of smart technology allows for real-time monitoring and diagnostics, improving maintenance practices and reducing downtime.

The impact of the HTSB-3015 on the metal fabrication sector is profound, as it enables companies to produce intricate components with remarkable speed and quality. As industries continue to evolve, the adoption of machines like the HTSB-3015 positions businesses at the forefront of innovation, driving growth and sustaining operational excellence in the increasingly competitive market landscape.

Key Features of the laser cutting machine for metal Sheet

The HTSB-3015 Laser Cutting Machine for metal sheets stands out in the metal fabrication industry due to its innovative features designed for precision and efficiency. One of the most significant attributes of the HTSB-3015 is its customizable power options. This flexibility allows operators to adapt the cutting power according to the specific requirements of various metallic materials. Whether working with thin sheets or thicker plates, the machine’s power can be modified to ensure optimal cutting performance, thus minimizing material waste and enhancing productivity. This flexibility makes it an excellent laser cutting machine for metal industries.

Another noteworthy feature is the robust gantry structure of the HTSB-3015, which provides superior stability during operation. This design diminishes vibrations and ensures a consistent cutting line, which is critical when maintaining strict tolerances. The gantry structure, combined with advanced laser technology, ensures that the HTSB-3015 can deliver intricate designs and clean cuts irrespective of the material thickness or complexity, making it a reliable laser cutting machine for metal in diverse industrial applications.

In addition to the physical attributes, the HTSB-3015 includes user-friendly software that simplifies the design and cutting processes. This intuitive interface enables operators to quickly upload design files, set parameters, and initiate cutting operations with minimal training required. The software’s advanced features also allow for real-time monitoring, enabling operators to track performance metrics and make adjustments as necessary. The ease of use is a key factor for anyone seeking an efficient laser cutting machine for metal.

Ultimately, the HTSB-3015 Laser Plate Cutting Machine’s unique features—customizable power options, robust gantry structure, and user-friendly software—collectively contribute to its reputation as a leader in precision and efficiency. These attributes make it an invaluable asset for businesses striving to optimize their metal cutting processes, providing a superior laser cutting machine tailored for metal.

Specification of the Laser Plate Cutting Machine

Item	Specification
Performance Specification
Max Cutting Size	3000mm x 1500 mm
Max Load Capacity	700 Kg
Max Linkage Speed	120m/min
Position Accuracy	±0.03mm per Meter
Repeated Positoning Accuracy	±0.02/1000mm
Max Accelerated Speed	1.5 G
Working Environment	Tem: 0-40 oc Humidity 80% Less
Cutting Material	Carbon Steel, Stainless Steel , Aluminum , Copper, Galvanized Steel Plate etc
Mechanical Specification
Control System	FSCUT2000E
HMI Pattern	Super Touch Screen
Cutting Software	FSCUT
Laser Source	Raycus3000w
Laser Cutting Head	Raytool Auto Focus Cutting Head
Cooling System	S&A Water-Cooled Chiller
Servos and Motor	Yaskawa Servo Motor system
Reducer	Nidec ( shimpoo Reducer from Japan )
Transmission System	YYC Rack and Pin, HIWIN Guide Rails
Bed Body	Tube-welded,Excellent engineered ,Stress-Relieved
Gantry Structure	Cast Aluminum beam
Exchangible Bed Pallet	Yes
Electronic Parts	Schneide /Omron and Igus Cable
Hydraulic Parts	SMC/ AirTec Brand
Electric Control Cabinet	Independent
Parted Dust Removal System	Automatic Segmented , Draught fan 5.5 kw , 2800 RPM
Lubricated System	Automatic
Bevel Cutting	Optional
Power Supply	380V, 50HZ±10%
Auxiliary Gas	Compressed air, Oxygen, Nitrogen
Valves	O2 Proportional Valve & N2 Proportional Valve
AC System	An Air Conditioner for Electric Cabinet

The Featured Components of the laser cutting machine

01.

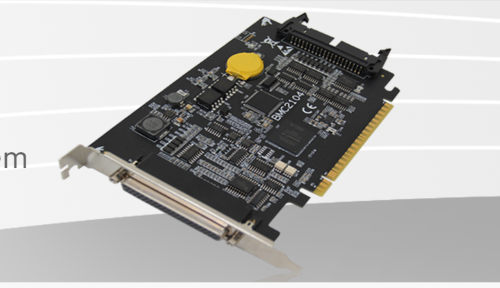

Hight Intelligent Cycut FSCUT 2000E Control Systme

FSCUT2000E medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabrication industry, with features of easy to install and adjust, excellent performance and fully integrated solutions.

Control system for laser cutting machine for metal sheet

02.

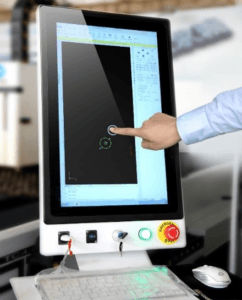

Super touch screen industrial computer of the laser cutter

The touchscreen display adopts the UI design of the display and the working table to make the use more intuitive. High-definition capacitive touch screen, equivalent to the positioning accuracy of an ipad.
The elegant shape curve fits the body design, and the powerful waterproof and breathable system makes the space breathe and use more smoothly.

High-definition plasma tempered glass makes the screen more delicate and comfortable to operate. The large display menu layout is simple and intuitive, with built-in cutting parameters to improve machining reliability.

03.

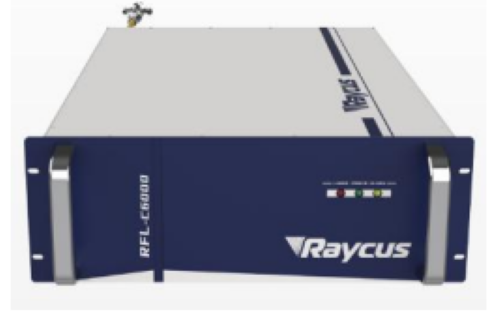

Raycus 3000W Laser Generator

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation..

Laser source of laser cutting machine for metal sheet

04.

Raytool Cutting Head of the laser cutter for metal

This cutting head has strong advantages in medium power large format fiber laser cutting applications
The internal structure of the laser head is completely sealed to avoid dust pollution of the optical part the laser head adopt

05.

Transmission System

• The Yaskawa Servo Motors and Drives with fast dynamic response provides speed and performance stability.
• The maximum idle speed of the machine can reach up to 130 m/min with the
Acceleration of 1.5 G.
• With perfect combination of servo system with the Shimpo planetary gearbox and Helical Rack & Pinion improves the Position and Re-Positioning accuracy of the machine.
• The Linear Transmission system comprises of from PEK Helical Rack and HIWIN
Linear Guides which improves
• High quality Cast Aluminium Gantry is much lighter compared with cast iron gantry which highly improves the gantry strength and rigidity.

Yaskawa Servo Motor

High Accurate Rack and Pin

Shimpoo Reducer

HIWIN Guide Way

06.

Heavy Plate Welding Machine Body

ANSYS” professional software for finite element analysis, many times to optimize the design, improve the dynamic performance of the bedsystem; The bed adopts linear guide rail, high speed, high precision, rack and pinion transmission, maximum positioning speed 140M/min

The “honeycomb” structure prevents the temperature stress from affecting the bed precision;It can also cut off the vibration generated when the bed runs at high speed

The machine bed is welded with carbon structural steel misaligned honeycomb structure, machined after stress relief annealing, and then subjected to vibration aging and natural aging treatment, so that the stress of welding and machining can be completely eliminated, and the bed is guaranteed. Excellent rigidity and high precision, can maintain normal use for 20 years without deformation.

07.

Parts Dust Removal System

Partition dust removal system can dedusting each processing area of the worktable separately. The worktable can be divided into 4 areas, 6 areas, 8 areas, etc. according to the size of the worktable. When the laser head is fixed in a certain area or several certain areas, the partition dust removal system can be individually dedusting in the certain areas according to the customer’s processing needs,can increase the dust removal effect in this area and produce better workpieces..

02.

Automatic Lubrication System

Automatic lubrication system upgrades, which increases gear and screw lubrication, regular quantitative provision of lubricants, and extends the service life of the machine (other manufacturers only provide guide rail lubrication)
The felt wheel can lubrication for the gear and rack.Automatically calculate time and travel distance for lubrication.

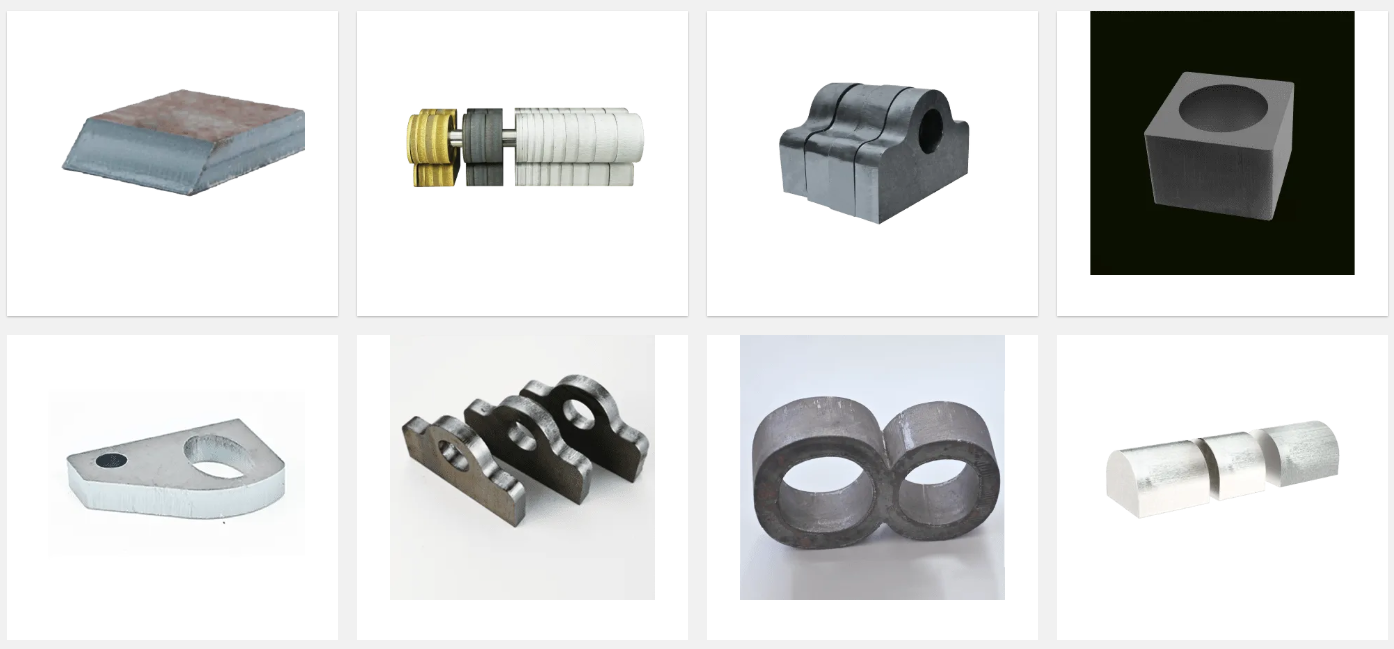

The Metal Sheet Cutting Capacity of the laser cutter

The Delivery of the Plate laser cutting machine
